When you walk into a comfortable room, you probably don’t think about what is happening behind the walls. You see the thermostat and feel the fresh air, but the real workhorse is completely hidden. That workhorse is your air distribution network. Central heating and cooling systems rely on a complex pathway of hidden tubes to move treated air into your rooms and pull old air back out. But how exactly is professional HVAC Ductwork Installation Alpharetta actually executed? Having high-quality HVAC ductwork installed and properly fitted requires much more than just snapping pipes together like building blocks. It takes careful math, smart layout planning, and hard work. Understanding this installation process reveals why professional assembly is so important for keeping your home comfortable and your energy bills low.

Understanding How HVAC Ductwork Installed Systems Work

Step 1: Engineering and System Design

An indoor air project never starts with a worker grabbing loud tools or cutting shiny metal. It always starts at a desk, with careful calculations to determine exactly how the HVAC ductwork installed in the house will work. Think of it like a giant puzzle! If the air tubes are too small, your air conditioner and heater will have to huff and puff way too hard, causing them to break down early or leave your bedroom feeling like an oven. But if the tubes are too big, the air moves way too slowly and barely blows out at all, leaving some rooms feeling super stuffy.

To prevent these problems, indoor air experts use a set of rules, Manual D, to calculate indoor air systems. You can think of this as a mathematical blueprint. It uses the house’s size and layout to map out the optimal size, shape, and path for each tube. The designer draws the straightest lines possible. They try to avoid twists and turns because every single corner slows the air down, just like how you have to slow down when riding your bike around a sharp curve!

Step 2: Selecting the Right Materials

Once the blueprint is ready, the team chooses the best materials for the house. Technicians generally use two main types of air tubes:

Rigid Sheet Metal

These are solid pipes made of galvanized steel or aluminum. They are very strong and have a smooth inside surface, which lets air glide through quickly and easily. Because they are completely solid, they do not crush or tear, and they keep moisture and mold from growing inside over time.

Flexible Ductwork

These are bendable tubes made of a bouncy wire spring, covered with a plastic sleeve, and wrapped in a thick blanket of fiberglass insulation. They are perfect for squeezing into tight, awkward spots or curved spaces where stiff metal pipes cannot fit. However, workers must pull them tight and straight; any excess sag or kink will block airflow.

Step 3: Cutting and Framing the Paths

With materials chosen and plans drawn, the physical work inside the house finally begins. In new buildings, this happens during the “rough-in” phase. This is the short window of time between when the wooden walls and roof are built and when the drywall is put up.

Technicians walk through the property to cut openings in the floors and ceilings where the room vents will be installed. They make sure these holes line up perfectly with the wooden wall studs and floor beams. Next, the team installs strong metal hangers, long straps, or framing supports from the ceiling beams to hold the heavy main pipes in place safely.

Step 4: Hanging the Main Trunks and Branches

With the support straps securely anchored to the wooden framing, the team begins installing the heavy parts. They assemble the large supply and return boxes first, attaching them directly to the main indoor heating or cooling unit.

Next, the crew lifts the main trunk lines—the heavy highway pipes—into position along the hallways or crawlspaces, resting them safely in the support hangers. Once the main trunks are hanging straight, installers use special metal fittings called take-offs to cut into the main pipe and attach the smaller branch lines. These branches are then carefully routed through the open walls directly to the room openings, where people will feel the air.

Step 5: Sealing and Fastening Every Connection

An air system is only as good as its seals. Even tiny gaps where two pipes meet can let massive amounts of heated or cooled air escape into your attic or under the house, which wastes energy and drives up electric bills.

To prevent leaks, technicians never rely on standard hardware-store tape. Instead, they lock every metal joint together with specialized sheet-metal screws so the pieces cannot wiggle apart. Once the metal parts are physically joined, they paint a thick, paste-like sealant called duct mastic directly over the seams with a brush. For extra strength, they wrap the joints in heavy-duty foil tape to ensure the connection stays completely airtight for decades.

Step 6: Adding Insulation

If air tubes pass through areas of a home that are not heated or cooled—like a roasting hot summer attic or a cold crawlspace, they must be thoroughly insulated.

Without insulation, cold air moving through a metal pipe in a hot attic will heat up rapidly before it ever reaches your bedroom. Even worse, the temperature difference will cause moisture to condense on the outside of the cold metal, just like water droplets form on the outside of a cold glass of lemonade on a hot summer day. This condensation can drip down and cause water damage to ceilings. Installers wrap these sections tightly in fiberglass insulation blankets to block out the heat and moisture.

Step 7: Testing Airflow and Balancing the System

Once everything is built and the drywall is finished, the final step is testing and balancing. The installation team turns on the main HVAC unit to check the air pressure throughout the entire property.

Using specialized tools such as airflow meters and pressure gauges, technicians measure the exact amount of air exiting each vent. If one room is getting too much air while a distant bedroom is getting too little, they adjust the balancing dampers, hidden inside the lines. These adjustments fine-tune the airflow across the house, ensuring every single living space stays perfectly even and comfortable.

Summary

Understanding how your air channels are designed and put together highlights exactly why this process is not a DIY weekend project. A reliable air network requires precise mathematical formulas, specialized tools, and strict adherence to local building safety codes to protect the home.

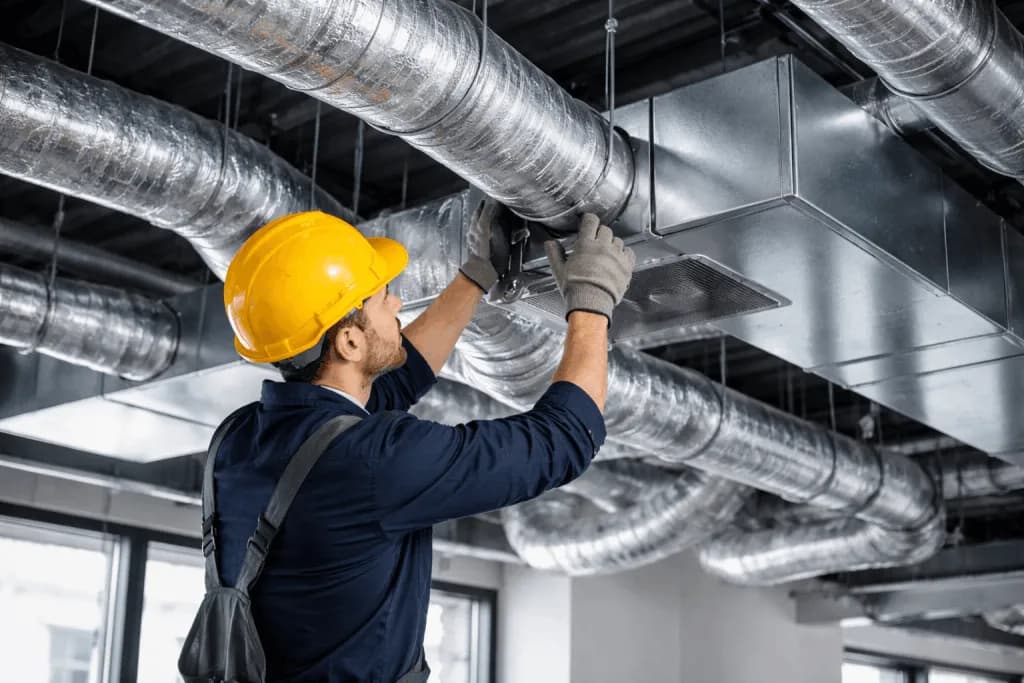

How is HVAC ductwork installed?
